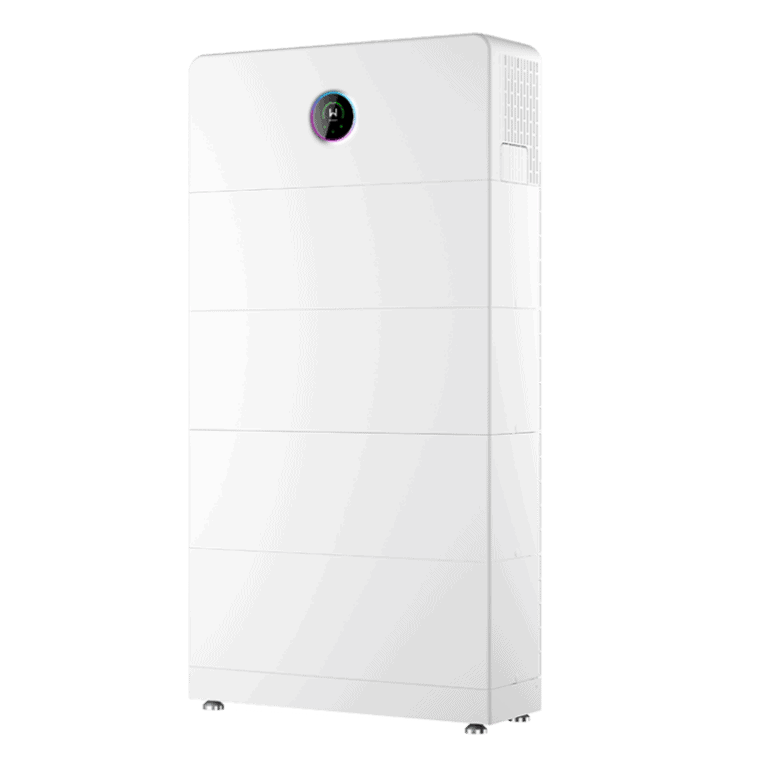

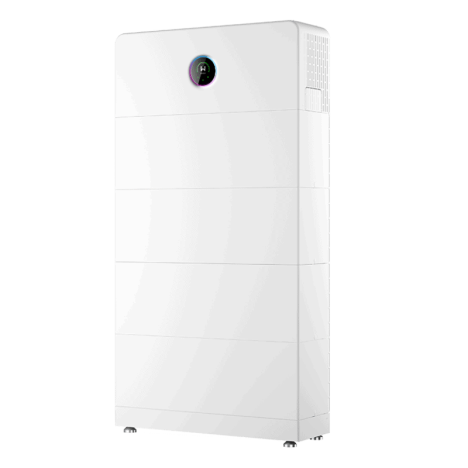

GoodWe ESA Home Battery

Home > Solar Battery > GoodWe ESA Series Battery

The GoodWe ESA is a reliable and scalable all-in-one residential storage solution. It combines a solar battery, a hybrid inverter and energy management into a single system.

All-In-One Storage Solution

The GoodWe ESA Series simplifies home energy by combining an inverter and battery into one pre-wired, modular system. A standard system setup requires selecting and installing each individual component. The ESA is a fully integrated system, making installation faster and monitoring less complex.

Stackable Design, Limitless Possibilities

The ESA is designed with flexibility in mind. It allows for seamless expansion of your solar storage to meet evolving energy needs. The system uses 5kWh and 8kWh battery modules. You can mix these module sizes and connect a total of 12 within a single stack to reach up to 108kWh.

Reliable Whole-Home Backup

One of the standout features of the ESA battery is its ability to provide UPS-level, full-house backup without the need for a gateway. This means your home stays powered during outages with seamless transitions to backup power in under 4 milliseconds. This means your lights and appliances will stay running in the event of a blackout, storm and grid maintenance.

Optimised Performance

The ESA energy storage system is engineered for high efficiency and fast energy response, featuring a 1 Cell charge/discharge rate that enables rapid energy cycling. With support for 20A input per string and up to 200% PV oversizing, it maximises solar energy utilisation even under varying conditions.

GoodWe ESA Series Specs

Power

Usable Energy Capacity
5-48 kWh (single phase)
5-108 kWh (three phase)

Total Energy Capacity
5.12-49.92 kWh (single phase)
5.12-108 kWh (three phase)

Max Charging / Discharging Power
7.5-13.5 kW / 5.5-11kW (single phase)
5-30 kW / 5.5-33 kW (three phase)

Backup Power
Full house back-up with no gateway needed.

Key Features

Optimised Performance
1 Cell charge/discharge for rapid energy cycling.

Flexible & Adaptable Applications
Flexible battery mixing with different capacity or old & new batteries.

Superb Safety & Reliability Advanced 6-layer safety protection.

Smart Control & Monitoring
Seamless switching to backup.

ESA Three Phase Product Specifications

ESA Series / Battery Module:

Model	GW5.1-BAT-D-G20	GW8.3-BAT-D-G20
Rated Energy	5.12 kWh	8.32 kWh
Usable Energy	5 kWh	8 kWh
Battery Type	LiFePO4	LiFePO4
Operating Voltage Range (three phase system)	700 ~ 950 V	700 ~ 950 V
Max. Input Current (System)	12 A	19 A
Max. Output Current (System)	13.2 A	21.0 A
Max. Input Power (System)	5 kW	8 kW
Max. Output Power (System)	5 kW	8 kW

ESA Series / Power Module:

Model	GW5K-ETA-G20 GW6K-ETA-G20 GW8K-ETA-G20 GW9.999K-ETA-G20 GW12K-ETA-G20 GW15K-ETA-G20 GW20K-ETA-G20 GW20K-ETA-G20 GW25K-ETA-G20 GW29.999K-ETA-G20
Phase	Three Phase
System Size	5kW, 6kW, 8kW, 9.999kW, 12kW, 15kW, 20kW, 25kW, 29.999kW
Max. PV Input Power	10kW, 12kW, 16kW, 20kW, 24kW, 30kW, 40kW, 50kW, 60kW
Number of MPP Trackers	3 to 4
Max. Efficiency	98.2%

General Data:

Weight	57.5 kg / 79 kg
Dimensions (W x H x D)	800mm x 326mm x 270mm
Charging Temperature Range	-18˚C to 55˚C
Discharging Temperature Range	-20˚C to 55˚C
Relative Humidity	5 to 95%
Max. Operating Altitude	4000 m
Cooling	Natural convection
System Ingress Protection Rating	IP66
Mounting Method	Wall / Floor Mounted
Standard and Certification	IEC62619, IEC60730, EN62477, IEC63056, IEC62040, CE, CEC

ESA Single Phase Product Specifications
