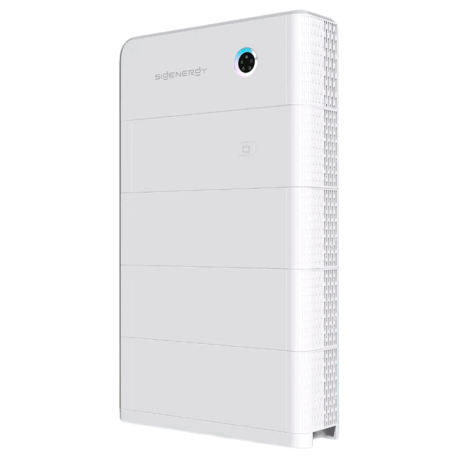

Sigenergy SigenStor Battery
Sigenergy’s SigenStor is the ultimate all-in-one energy storage system for both homes and businesses. The SigenStor stands out as an innovative solution aimed at increasing your energy independence.
5-in-One Energy Storage System
The SigenStor is a revolutionary 5-in-One system that combines several key energy components. This system simplifies your home energy by integrating an inverter, battery pack, battery power conversion system (PCS), EV DC charger and energy management system (EMS) into one unit. This streamlined setup offers a user-friendly experience that adapts to all your energy usage needs.
Scalable On Demand
SigenStor offers complete flexibility. You can choose a single 9kWh battery or combine multiple batteries to achieve your desired storage capacity (up to 54.2kWh). Sigenergy’s unique modular design lets you easily expand or change your setup. Whether for home or business, you can customise the system to meet your exact needs. For businesses, you can connect multiple SigenStor units in parallel to expand capacity.
Home EV Charging Module
The Sigenergy EV DC Charger lets you directly use DC power from your battery and solar panels, allowing for completely green charging. Plus, integrated Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) functionalities provide exciting new possibilities for modern energy management. Please note that Vehicle-to-Everything (V2X) functionality is limited by your vehicle’s capabilities.
Sigen Battery 9.0 kWh Specs
Power
Usable Storage Capacity
9.0 kWh
Total Storage
9.04 kWh
Max Charging / Discharging Power
4.6 kW
Dimensions (WHD) & Weight
767 x 270 x 260mm
78 kg
Key Features
Fully integrated
5-in-One Home Energy Storage System
1-6 stackable battery modules
9-54 kWh Capacity range per stack
Fast installation
Guided quick connectors between battery modules auto plug once stacked
Parallel connections for flexible battery mix
Choose a single 9kWh battery or combine multiple batteries
| Model | SigenStor BAT-10.0 |
| Battery Type | LiFePO4 |
| Total Energy Capacity | 9.04 kWh |
| Usable Energy Capacity | 9.0 kWh |
| Max. Charge / Discharge Power | 4600 W |
| Max. Charge / Discharge Current | 13.8 A |
| Peak Charge / Discharge Power (10 seconds) | 6900 W |
| Weight | 78 kg |
| Dimensions (W x H x D) | 767mm x 270mm x 260mm |
| Storage Temperature Range | -25˚C to 60˚C |
| Operating Temperature Range | -20˚C to 55˚C |
| Relative Humidity Range | 5% ~ 95% |
| Max. Operating Altitude | 4000 m |
| Cooling | Natural convection |
| System Ingress Protection Rating | IP66 |
| Installation Method | Floor standing / Wall-mounted |
| Number of modules per controller | 1 ~ 6 |
| Standard Compliance | IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040 |
Certified Sigenergy Installer
Perth Solar Force is a Sigenergy Certified Installer. This means our team is expertly trained and qualified to install the Sigenstor battery system, ensuring the highest standards of safety and quality. Upgrade your property with an expert battery installation today.
Compatible Products:
SigenStor is designed as a 5-in-one complete energy storage solution. To fully understand how it works, it’s helpful to learn about the other components that make up the system:
Sigen EV DC Charger
- Charge EV with 100% solar power
- Wide EV compatibility
- Max. 25 kW stable bi-directional charging
